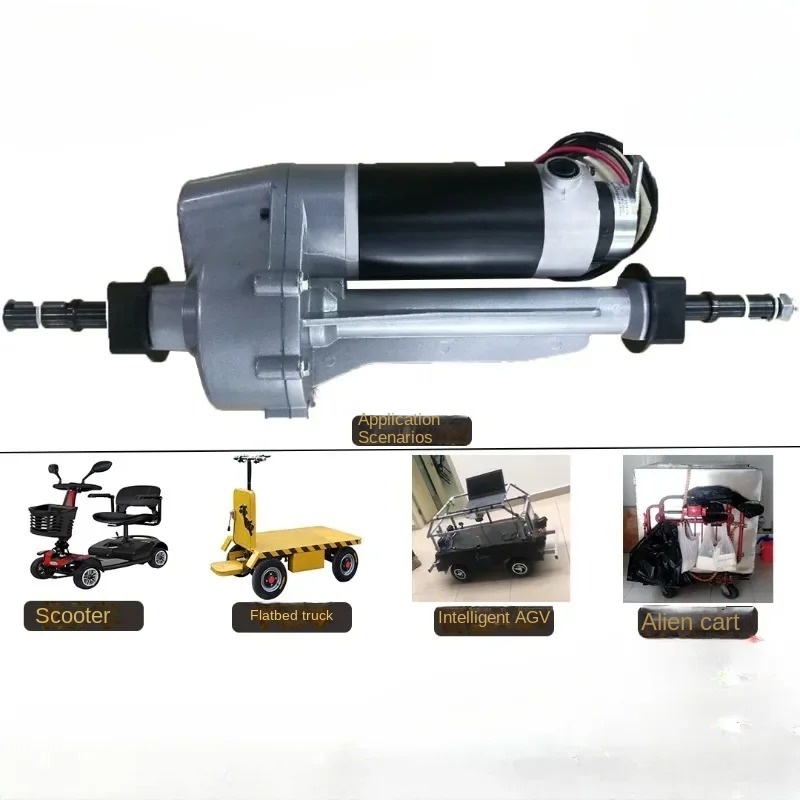

" alt="Le chariot électrique à plateau de la trottinette soldes pour les personnes âgées 24V250W" width="527" height="527" />The electric flatbed trolley of the scooter for the elderly drives 24V250W motor rear axle for 68ZY24-180/250
Name:Drive axle Voltage:DC24V
Rated power:180W Deceleration ratio:18:1
Rated current:≤11.5A Rated torque:10.2 N*m
Load speed:169rpm No-load current:≤2A
No-load speed:200rpm Noise:65dB
Load:150Kg Speed:0-10km
Features:Small size, strong power, smooth running, durable, high efficiency, low power consumption, pure copper coil with small heat, with electromagnetic brake.
Name:Drive axle Voltage:DC24V
Rated power:250W Deceleration ratio:18:1
Rated current:≤11.5A Rated torque:11.4 N*m
Load speed:240rpm No-load current:≤3A
No-load speed:276rpm Noise:65dB
Load:250Kg Speed:0-10km
Features:Small size, strong power, smooth running, durable, high efficiency, low power consumption, pure copper coil with small heat, with electromagnetic brake.
Name:Drive axle Voltage:DC24V
Rated power:500W Deceleration ratio:18:1
Rated current:≤25A Rated torque:16N*m
Load speed:200rpm No-load current:≤3A
No-load speed:220rpm Noise:65dB
Load:300Kg Speed:0-10km
Features:Small size, strong power, smooth running, durable, high efficiency, low power consumption, pure copper coil with small heat, with electromagnetic brake.
